19-Zoll-Gehäuse
Combimet 19-Zoll
Universal-Rack-Gehäuse entspricht DIN 41494 und IEC 60297-3

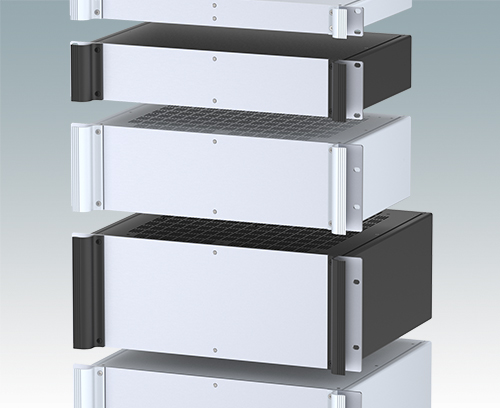

- Vielseitige 19-Zoll-Rack-Gehäuse in den Größen 1 HE bis 6 HE,

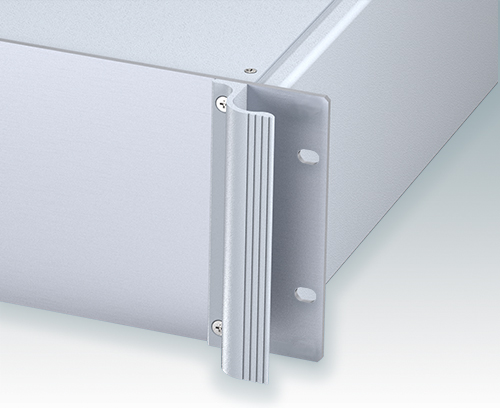

- Sehr modernes Design mit ergonomischen Frontplattengriffen

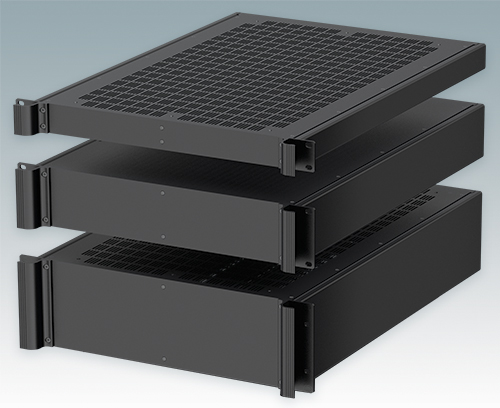

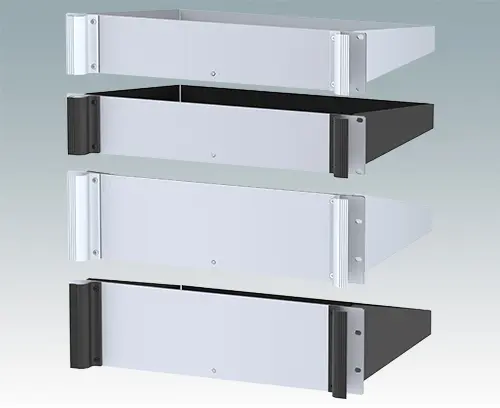

- Super-tiefe 24 "(610 mm) Versionen für Server-Racks. Version T mit offenem Oberteil

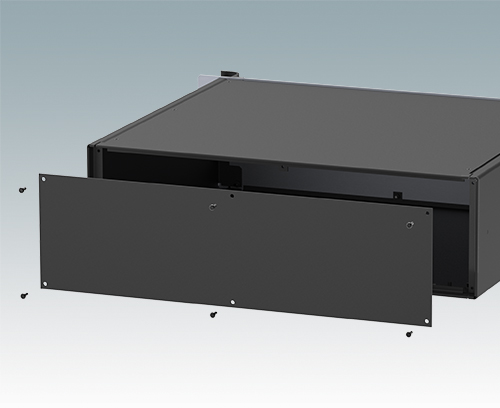

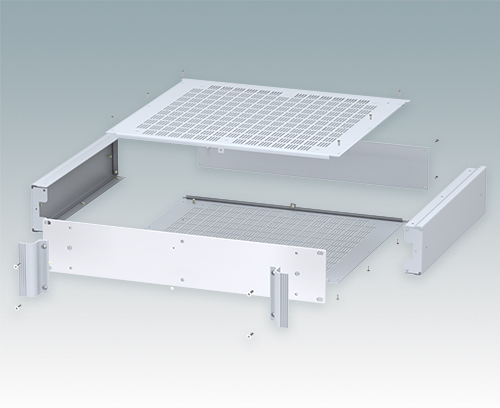

- Robuster Gehäusekorpus aus Aluminium mit abnehmbarer Deck- und Bodenplatte sowie Rückplatte
- Deck- und Bodenplatte mit oder ohne Lüftungsöffnungen
- 19-Zoll-Frontplatte aus eloxiertem Aluminium

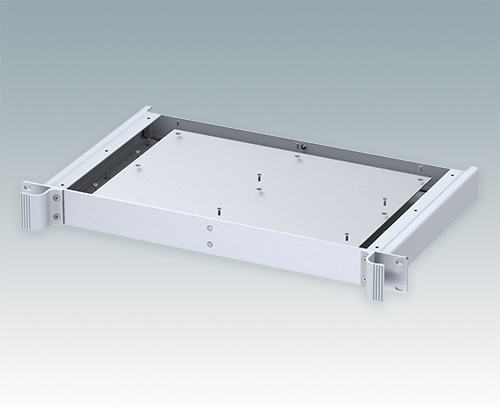

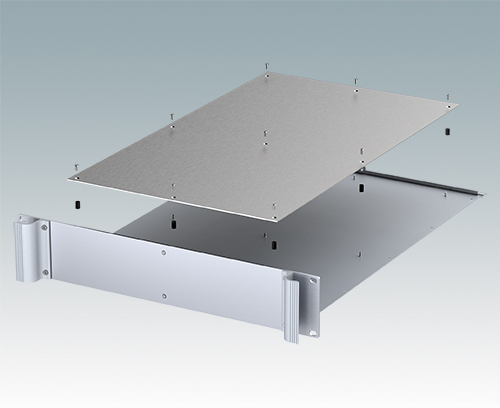

- Montagelöcher im Boden für Leiterkarten und Chassis

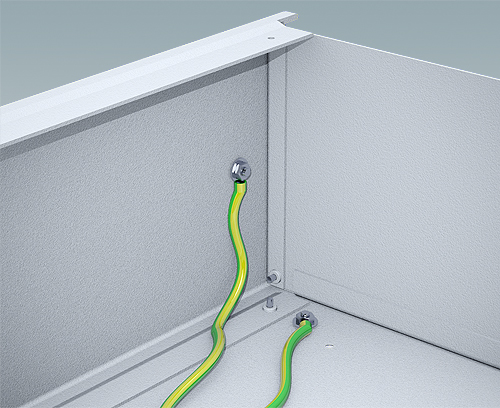

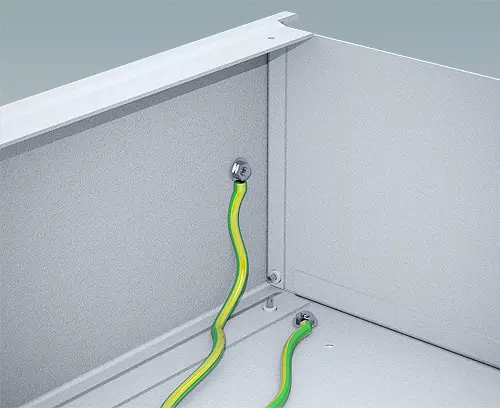

- M4-Erdungsbolzen an allen Komponenten für Stromdurchgang
- Zwei Standardfarben Schwarz oder Hellgrau
- Gehäuse bereits fertig montiert

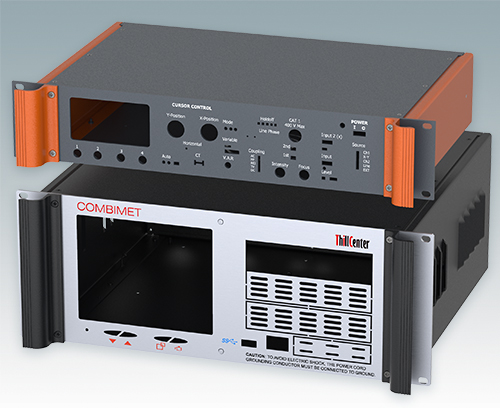

Bestellen Sie Ihre eigene kundenspezifische Version. Hier erfahren Sie mehr >>
Anwendungsfelder
Elektronikanwendungen für Rackeinsatz,
wie z. B. Netzwerk- und Kommunikationsgeräte, Fertigungsrechner, Sound- und Studiosysteme, Laborgeräte und Fertigungssteuerungssysteme.
M6119235

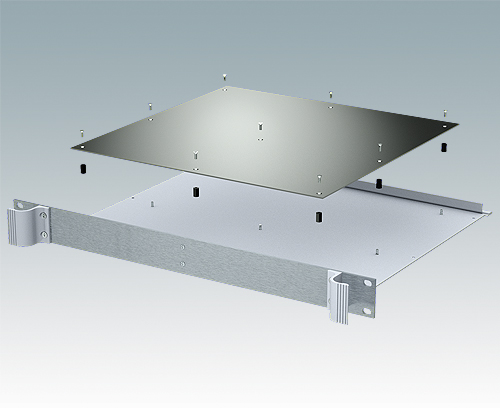

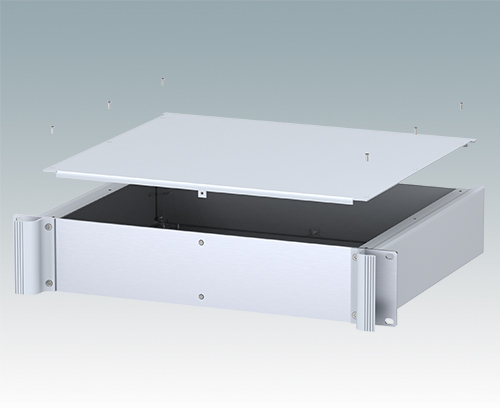

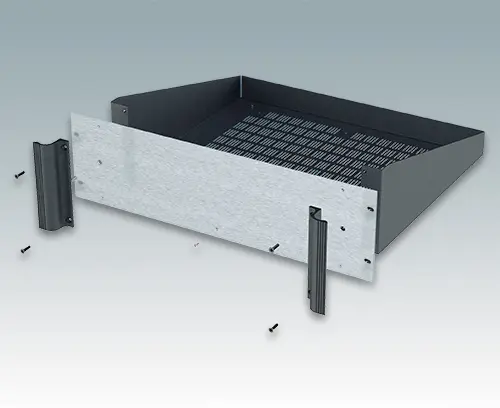

Ausführung Oben offen
Lieferumfang 19-Zoll-Frontplatte, belüfteter Gehäusekorpus, Griffprofile (2x), M4 x 16 mm (4x), M3 x 8 mm (1x). Komplett montiert geliefert.
M6119235
COMBIMET T 19" 2HEx365mm Oben offenLichtgrau RAL 7035
88,1x482,6x365mm
M6119239
Ausführung Oben offen
Lieferumfang 19-Zoll-Frontplatte, belüfteter Gehäusekorpus, Griffprofile (2x), M4 x 16 mm (4x), M3 x 8 mm (1x). Komplett montiert geliefert.
M6119239
COMBIMET T 19" 2HEx365mm Oben offenSchwarz RAL 9005
88,1x482,6x365mm
M6119335
Ausführung Oben offen
Lieferumfang 19-Zoll-Frontplatte, belüfteter Gehäusekorpus, Griffprofile (2x), M4 x 16 mm (4x), M3 x 8 mm (1x). Komplett montiert geliefert.
M6119335
COMBIMET T 19" 3HEx365mm Oben offenLichtgrau RAL 7035
132,5x482,6x365mm
M6119339
Ausführung Oben offen
Lieferumfang 19-Zoll-Frontplatte, belüfteter Gehäusekorpus, Griffprofile (2x), M4 x 16 mm (4x), M3 x 8 mm (1x). Komplett montiert geliefert.
M6119339
COMBIMET T 19" 3HEx365mm Oben offenSchwarz RAL 9005
132,5x482,6x365mm
M6219115

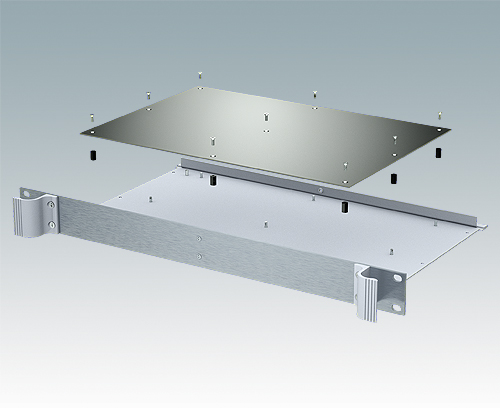

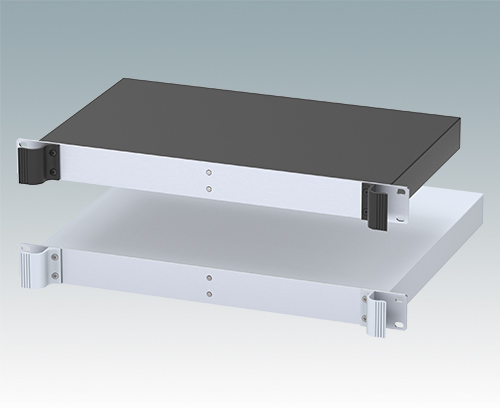

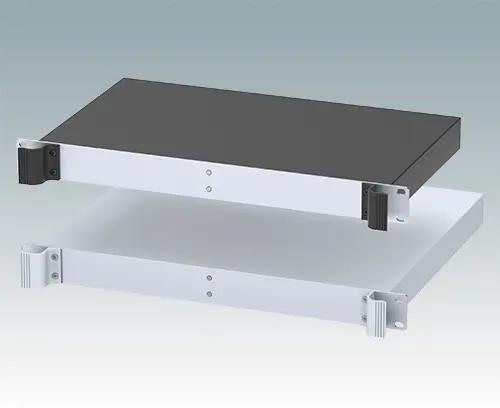

Ausführung Unbelüftete, solide Oberseite
Lieferumfang 19” Frontplatte, obere Abdeckung, Bodenplatte, Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219115
COMBIMET 19" 1HEx265mm Solide OberseiteLichtgrau RAL 7035
43,6x482,6x265mm
M6219119
Universelles 19” Rack-Gehäuse mit eloxierten Alufrontblechen und zwei ergonomischen Frontblechgriffen. Der Gehäusekörper besteht aus einer soliden oberen Abdeckung mit abnehmbarer Bodenplatte und Rückwand. Das Bodenblech hat Montagelöcher für eine Leiterplatte oder die zugehörige Montageplatte. Für den elektrischen Anschluss sind alle Teile mit M4 Erdungsschrauben ausgestattet.
Ausführung Unbelüftete, solide Oberseite
Lieferumfang 19” Frontplatte, obere Abdeckung, Bodenplatte, Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219119
COMBIMET 19" 1HEx265mm Solide OberseiteSchwarz RAL 9005
43,6x482,6x265mm
M6219125
Universelles 19” Rack-Gehäuse mit eloxierten Alufrontblechen und zwei ergonomischen Frontblechgriffen. Der Gehäusekörper besteht aus einer soliden oberen Abdeckung mit abnehmbarer Bodenplatte und Rückwand. Das Bodenblech hat Montagelöcher für eine Leiterplatte oder die zugehörige Montageplatte. Für den elektrischen Anschluss sind alle Teile mit M4 Erdungsschrauben ausgestattet.
Ausführung Unbelüftete, solide Oberseite
Lieferumfang 19” Frontplatte, obere Abdeckung, Bodenplatte, Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219125
COMBIMET 19"1HEx365mm Solide OberseiteLichtgrau RAL 7035
43,6x482,6x365mm
M6219129
Ausführung Unbelüftete, solide Oberseite
Lieferumfang 19” Frontplatte, obere Abdeckung, Bodenplatte, Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219129
COMBIMET 19" 1HEx365mm Solide OberseiteSchwarz RAL 9005
43,6x482,6x365mm
M6219135
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219135
COMBIMET 19" 1HEx265mmLichtgrau RAL 7035
43,6x482,6x265mm
M6219139
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219139
COMBIMET 19" 1HEx265mmSchwarz RAL 9005
43,6x482,6x265mm
M6219145
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219145
COMBIMET 19" 1HEx265mm Mit LüftungLichtgrau RAL 7035
43,6x482,6x265mm
M6219149
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219149
COMBIMET 19" 1HEx265mm Mit LüftungSchwarz RAL 9005
43,6x482,6x265mm
M6219155
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219155
COMBIMET 19" 1HEx365mmLichtgrau RAL 7035
43,6x482,6x365mm
M6219159
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219159
COMBIMET 19" 1HEx365mmSchwarz RAL 9005
43,6x482,6x365mm
M6219165
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219165
COMBIMET 19" 1HEx365mm Mit LüftungLichtgrau RAL 7035
43,6x482,6x365mm
M6219169
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219169
COMBIMET 19" 1HEx365mm Mit LüftungSchwarz RAL 9005
43,6x482,6x365mm
M6219179
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219179
COMBIMET 19" 1HEx610mmSchwarz RAL 9005
43,6x482,6x609,6mm
M6219189
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219189
COMBIMET 19" 1HEx610mm Mit LüftungSchwarz RAL 9005
43,6x482,6x609,6mm
M6219235
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219235
COMBIMET 19" 2HEx265mmLichtgrau RAL 7035
88,1x482,6x265mm
M6219239
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219239
COMBIMET 19" 2HEx265mmSchwarz RAL 9005
88,1x482,6x265mm
M6219245
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219245
COMBIMET 19" 2HEx265mm Mit LüftungLichtgrau RAL 7035
88,1x482,6x265mm
M6219249
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219249
COMBIMET 19" 2HEx265mm Mit LüftungSchwarz RAL 9005
88,1x482,6x265mm
M6219255
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219255
COMBIMET 19" 2HEx365mmLichtgrau RAL 7035
88,1x482,6x365mm
M6219259
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219259
COMBIMET 19" 2HEx365mmSchwarz RAL 9005
88,1x482,6x365mm
M6219265
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219265
COMBIMET 19" 2HEx365mm Mit LüftungLichtgrau RAL 7035
88,1x482,6x365mm
M6219269
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219269
COMBIMET 19" 2HEx365mm Mit LüftungSchwarz RAL 9005
88,1x482,6x365mm
M6219279
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219279
COMBIMET 19" 2HEx610mmSchwarz RAL 9005
88,1x482,6x609,6mm
M6219289
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219289
COMBIMET 19" 2HEx610mm Mit LüftungSchwarz RAL 9005
88,1x482,6x609,6mm
M6219335
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219335
COMBIMET 19" 3HEx265mmLichtgrau RAL 7035
132,5x482,6x265mm
M6219339
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219339
COMBIMET 19" 3HEx265mmSchwarz RAL 9005
132,5x482,6x265mm
M6219345
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219345
COMBIMET 19" 3HEx265mm Mit LüftungLichtgrau RAL 7035
132,5x482,6x265mm
M6219349
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219349
COMBIMET 19" 3HEx265mm Mit LüftungSchwarz RAL 9005
132,5x482,6x265mm
M6219355
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219355
COMBIMET 19" 3HEx365mmLichtgrau RAL 7035
132,5x482,6x365mm
M6219359
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219359
COMBIMET 19" 3HEx365mmSchwarz RAL 9005
132,5x482,6x365mm
M6219365
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219365
COMBIMET 19" 3HEx365mm Mit LüftungLichtgrau RAL 7035
132,5x482,6x365mm
M6219369
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219369
COMBIMET 19" 3HEx365mm Mit LüftungSchwarz RAL 9005
132,5x482,6x365mm
M6219379
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219379
COMBIMET 19" 3HEx610mmSchwarz RAL 9005
132,5x482,6x609,6mm
M6219389
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219389
COMBIMET 19" 3HEx610mm Mit LüftungSchwarz RAL 9005
132,5x482,6x609,6mm
M6219435
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219435
COMBIMET 19" 4HEx265mmLichtgrau RAL 7035
177x482,6x265mm
M6219439
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219439
COMBIMET 19" 4HEx265mmSchwarz RAL 9005
177x482,6x265mm
M6219445
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219445
COMBIMET 19" 4HEx265mm Mit LüftungLichtgrau RAL 7035
177x482,6x265mm
M6219449
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219449
COMBIMET 19" 4HEx265mm Mit LüftungSchwarz RAL 9005
177x482,6x265mm
M6219455
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219455
COMBIMET 19" 4HEx365mmLichtgrau RAL 7035
177x482,6x365mm
M6219459
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219459
COMBIMET 19" 4HEx365mmSchwarz RAL 9005
177x482,6x365mm
M6219465
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219465
COMBIMET 19" 4HEx365mm Mit LüftungLichtgrau RAL 7035
177x482,6x365mm
M6219469
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219469
COMBIMET 19" 4HEx365mm Mit LüftungSchwarz RAL 9005
177x482,6x365mm
M6219479
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219479
COMBIMET 19" 4HEx610mmSchwarz RAL 9005
177x482,6x609,6mm
M6219489
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219489
COMBIMET 19" 4HEx610mm Mit LüftungSchwarz RAL 9005
177x482,6x609,6mm
M6219535
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219535
COMBIMET 19" 5HEx265mmLichtgrau RAL 7035
221x482,6x265mm
M6219539
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219539
COMBIMET 19" 5HEx265mmSchwarz RAL 9005
221x482,6x265mm
M6219545
Ausführung With ventilation
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219545
COMBIMET 19" 5HEx265mm Mit LüftungLichtgrau RAL 7035
221x482,6x265mm
M6219549
Ausführung With ventilation
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219549
COMBIMET 19" 5HEx265mm Mit LüftungSchwarz RAL 9005
221x482,6x265mm
M6219555
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219555
COMBIMET 19" 5HEx365mmLichtgrau RAL 7035
221x482,6x365mm
M6219559
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219559
COMBIMET 19" 5HEx365mmSchwarz RAL 9005
221x482,6x365mm
M6219565
Ausführung With ventilation
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219565
COMBIMET 19" 5HEx365mm Mit LüftungLichtgrau RAL 7035
221x482,6x365mm
M6219569
Ausführung With ventilation
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219569
COMBIMET 19" 5HEx365mm Mit LüftungSchwarz RAL 9005
221x482,6x365mm
M6219579
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219579
COMBIMET 19" 5HEx610mmSchwarz RAL 9005
221x482,6x609,6mm
M6219589

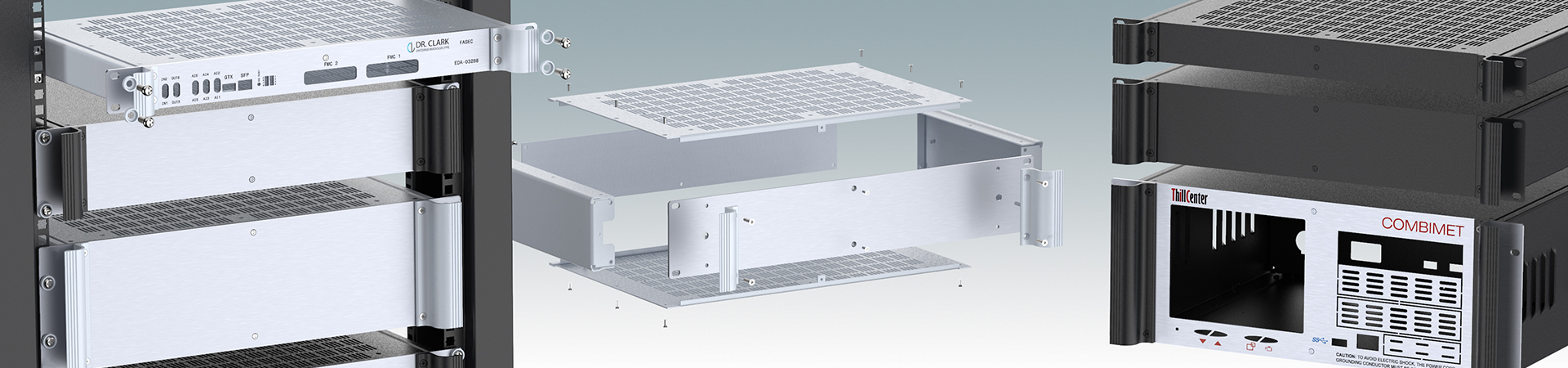

Universelles 19” Rack-Gehäuse mit Frontplatte in Aluminium schwarz lackiert und zwei ergonomischen Frontblechgriffen. Der Alugehäusekörper besteht aus zwei Seitenblechen mit abnehmbaren Deck-, Boden- und Rückblechen. Das Bodenblech hat Montagelöcher für eine Leiterplatte oder die zugehörige Montageplatte. Für den elektrischen Anschluss sind alle Teile mit M4 Erdungsschrauben ausgestattet.
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (4x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219589
COMBIMET 19" 5HEx610mm Mit LüftungSchwarz RAL 9005
221x482,6x609,6mm
M6219635
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219635
COMBIMET 19" 6HEx265mmLichtgrau RAL 7035
266x482,6x265mm
M6219639
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219639
COMBIMET 19" 6HEx265mmSchwarz RAL 9005
266x482,6x265mm
M6219645
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219645
COMBIMET 19" 6HEx265mm Mit LüftungLichtgrau RAL 7035
266x482,6x265mm
M6219649
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219649
COMBIMET 19" 6HEx265mm Mit LüftungSchwarz RAL 9005
266x482,6x265mm
M6219655
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219655
COMBIMET 19" 6HEx365mmLichtgrau RAL 7035
266x482,6x365mm
M6219659
Ausführung Ohne Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219659
COMBIMET 19" 6HEx365mmSchwarz RAL 9005
266x482,6x365mm
M6219665
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219665
COMBIMET 19" 6HEx365mm Mit LüftungLichtgrau RAL 7035
266x482,6x365mm
M6219669
Ausführung Mit Lüftung
Lieferumfang 19-Zoll Frontplatte, Deckplatte, Bodenplatte, Seitenteile (x2), Rückplatte, Griffe (x2), M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6). Komplett montiert geliefert.
M6219669
COMBIMET 19" 6HEx365mm Mit LüftungSchwarz RAL 9005
266x482,6x365mm
M6219679
Universelles 19” Rack-Gehäuse mit Frontplatte in Aluminium schwarz lackiert und zwei ergonomischen Frontblechgriffen. Der Alugehäusekörper besteht aus zwei Seitenblechen mit abnehmbaren Deck-, Boden- und Rückblechen. Das Bodenblech hat Montagelöcher für eine Leiterplatte oder die zugehörige Montageplatte. Für den elektrischen Anschluss sind alle Teile mit M4 Erdungsschrauben ausgestattet.
Ausführung Ohne Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (6x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219679
COMBIMET 19" 6HEx610mmSchwarz RAL 9005
266x482,6x609,6mm
M6219689
Ausführung Mit Lüftung
Lieferumfang 19” Frontplatte, Deckplatte, Bodenplatte, Seitenteile (2x), Rückplatte, Griffe (2x), M4 x 16 mm (6x), M3 x 8 mm (22x), M3 x 8 mm (6x). Komplett montiert geliefert.
M6219689
COMBIMET 19" 6HEx610mm Mit LüftungSchwarz RAL 9005
266x482,6x609,6mm
M5600001
Wenn Befestigungsschrauben für die Leiterplatte oder die Montageplatte erforderlich sind, beachten Sie bitte unseren Schraubensatz M5600010.
Lieferumfang 10 M3 x 10 mm Abstandshalter, 10 M3 x 6 mm Senkkopfschrauben.
M5600001
Leiterkarten Montage-SetSchwarz RAL 9005
M5600010
Packung mit 100 Flachkopf-Pozi-Antriebsschrauben M3 x 6 mm. Dient zum Anbringen von Leiterplatten und Montageplatten an den Abstandshaltern mit Gewinde in unseren Standardgehäusen: TECHNOMET, MINIMET
Diese Schrauben eignen sich auch zur Verwendung in Kombination mit dem M5600001 - Leiterplattenmontagesatz, um Leiterplatten an den Kunststoffmontagesäulen zu befestigen. Befestigungspunkte sind in den folgenden Beilagen für diesen Bausatz enthalten: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET
Diese Schrauben können auch verwendet werden, um die mit unseren UNICASE Gehäuse gelieferten Standardschrauben für die Schlitzgehäusebaugruppe zu ersetzen - wenn Pozi-Antriebsschrauben bevorzugt werden.
Darüber hinaus kann dieser Schraubensatz hilfreich sein, wenn Ihr Gehäuse mit M3-Gewindeeinsätzen und -Säulen ausgestattet ist.
Lieferumfang 100 Schrauben M3x6mm.
M5600010
PCB-Befestigungsschrauben, M3Verzinkt
6mm
M5900016
Lieferumfang Stahl Käfigmutter M6 (4x), M6 x 16 mm Schraube und schwarze Kunststoffscheibe (4x).
M5900016
19" Montage-Set

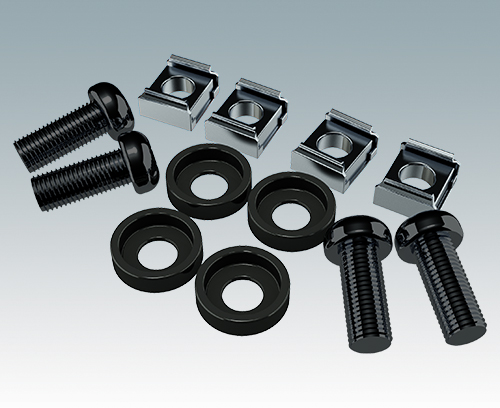

M5900018
Lieferumfang Stahl Käfigmutter M6 (4x), M6 x 16 mm schwarze Schraube und schwarze Kunststoffscheibe (4x).
M5900018
19" Montage-Set
M6000035
Lieferumfang Stahl Käfigmutter M6 (4x), M6 x 16 mm Schraube und hellgrau Kunststoffscheibe (4x).
M6000035
19" Montage-Set
M6200265
Lieferumfang Montageplatte, M3 x 10 mm Gewinde Abstandshalter (x9) und M3 x 6 mm Befestigungsschraube (x18).
M6200265
Montageplatte-Set (265mm)Blank
335x230x1,5mm
M6200365
Lieferumfang Montageplatte, M3 x 10 mm Gewinde Abstandshalter (x9) und M3 x 6 mm Befestigungsschraube (x18).
M6200365
Montageplatte-Set (365mm)Blank
335x330x1,5mm
M6200610
Lieferumfang Montageplatte, M3 x 10 mm Gewinde Abstandshalter (x9) und M3 x 6 mm Befestigungsschraube (x18).
M6200610
Montageplatte-Set (24-Zoll)Blank
335x574,6x1,5mm
- COMBIMET 19-Zoll Katalog 3.943 KB
